WS2812B LED Strip Addressable RGB LED Pixels Strip Programmable Dream Color Digital LED Ribbon Light 16.4ft 150 LEDs 5V Compatible with Arduino Raspberry Pi for Home Theater Bar Decor Lighting
$22.99
- Brand: ALITOVE
- Product Code: ALT-2812BK-150IP65-ECO
- Availability: In Stock
- Ex Tax: $22.99
Product Description
Attention!
The package only includes 1x WS2812B 5V LED strip.
To let it work, you need buy 5V power supply and WS2812B controller, which is not included in the package.
We recommend ALITOVE 5V power supply and controller.
Parameter

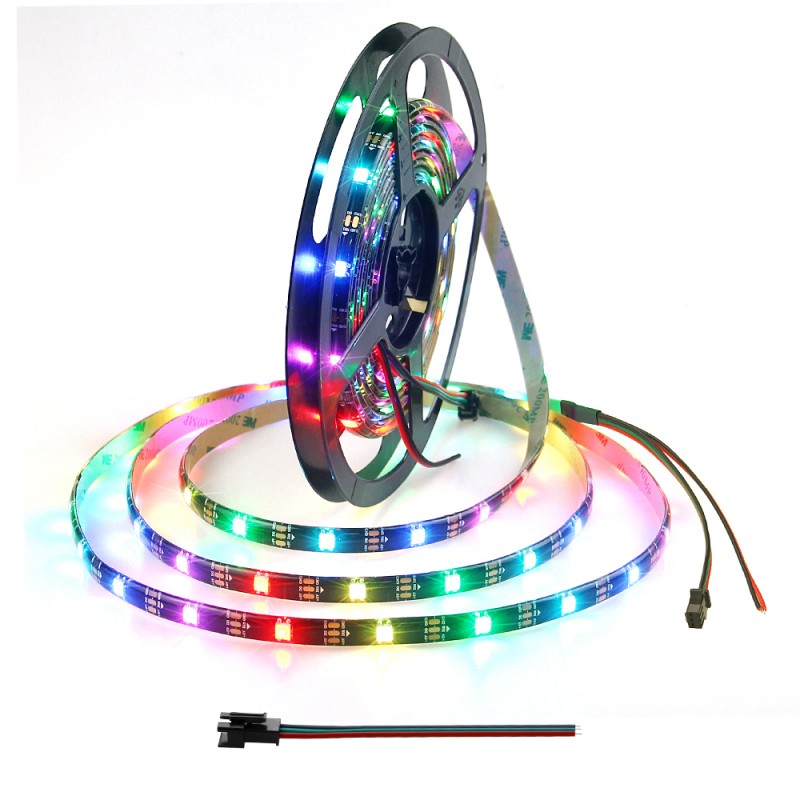

Name: ALITOVE WS2812B 5M/roll 150 pixels LED strip
Light source: 5050 RGB LED
IC Model: Built-in WS2812B IC
Led Qty: 30pcs per meter, 150pcs per roll
Wave length (NM): R/630nm; G/520nm; B/470nm
Gray level: 256 levels
Color: full color 24-bit (8bit each channel)
Beam angle: 120°
Working Voltage: DC 5V
Max Current: 6A
Max Power: 30W
Port scanning frequency reaches to 2KHz/s
Data transmitting speed is up to 800Kbps
Waterproof: Not Waterproof
FPCB board color: Black

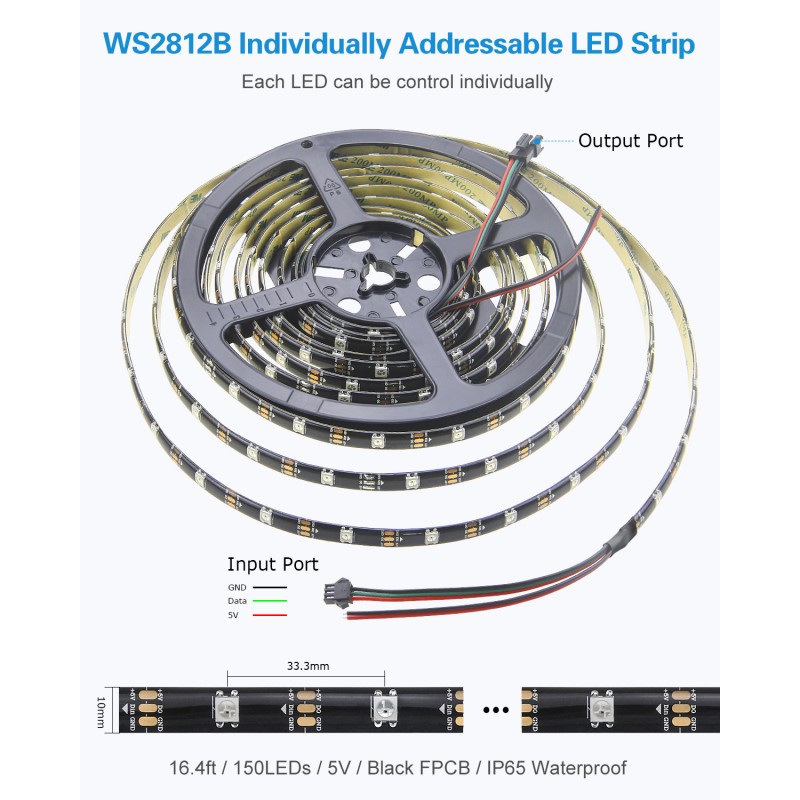

Dimension: (L) 5000mm*(W)10mm* (T)3mm
Life span: 50000hrs
Kindly note
1) You must use a 5V DC power supply to power these LED strips, do not use higher than 6V or you can destroy the entire LED strip.
2) It will become orange/red gradually when you set the entire LED strip to white. It is not quality issue, but voltage drop. You can inject power on both ends to solve this issue.
Package:
1x ALITOVE 5M/roll 150 pixels WS2812B LED strip (Power supply and controller are not included)
1x 3Pin JST SM connector
