12V 40A Power Supply 480W Switch Mode Power Supply Adapter Transformer LED Driver SMPS AC 110V / 220V to DC 12 Volt 40amp 35A 30A Converter for LED Light CCTV Camera Radio Speaker Amplifier

$49.99

  • Brand: ALITOVE
  • Product Code: 12V-40A-T
  • Availability: In Stock
  • Ex Tax: $49.99

Product Description

Parameter

  • Input: AC110V/220V 50/60Hz
  • Output Voltage : DC 12V
  • Output Current: 40A max
  • Output Wattage: 480W max
  • Fix Screw Hole Diameter: 2.5mm (0.1inch)
  • Working temperature: -15 to 55 degree Celsius
  • Storage temperature: -20 to 60 degree Celsius
  • Ambient Humidity: 0~85% Non-Condensation
  • Material: Metal, Electronic Parts
  • Safety Compliance: CCC/ FCC / CE
  • Weight: 3.5 lb / 1600g

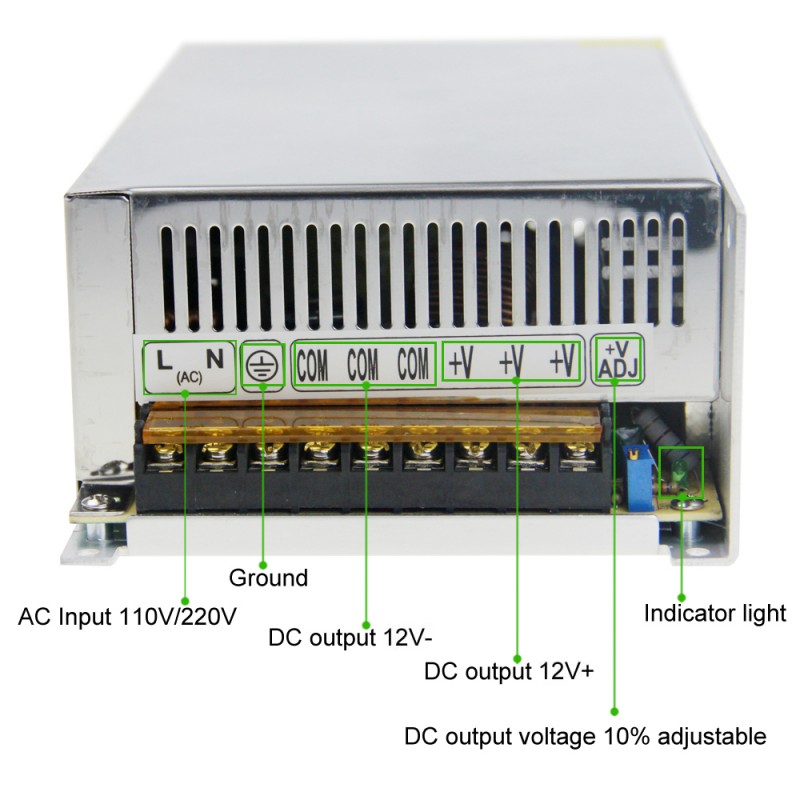

Connection instruction

  • L: Live wire
  • N: Negative wire
  • 〨: Ground
  • +V: DC power output “+”
  • -V: DC power output “-“
  • +V ADJ: Adjust the output voltage (10%)

Kindly note

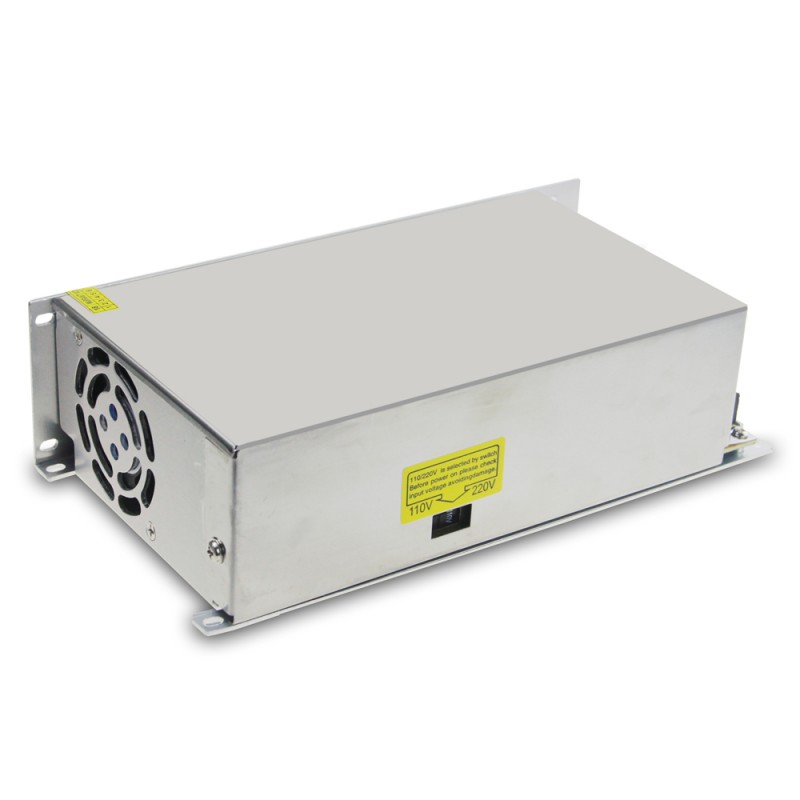

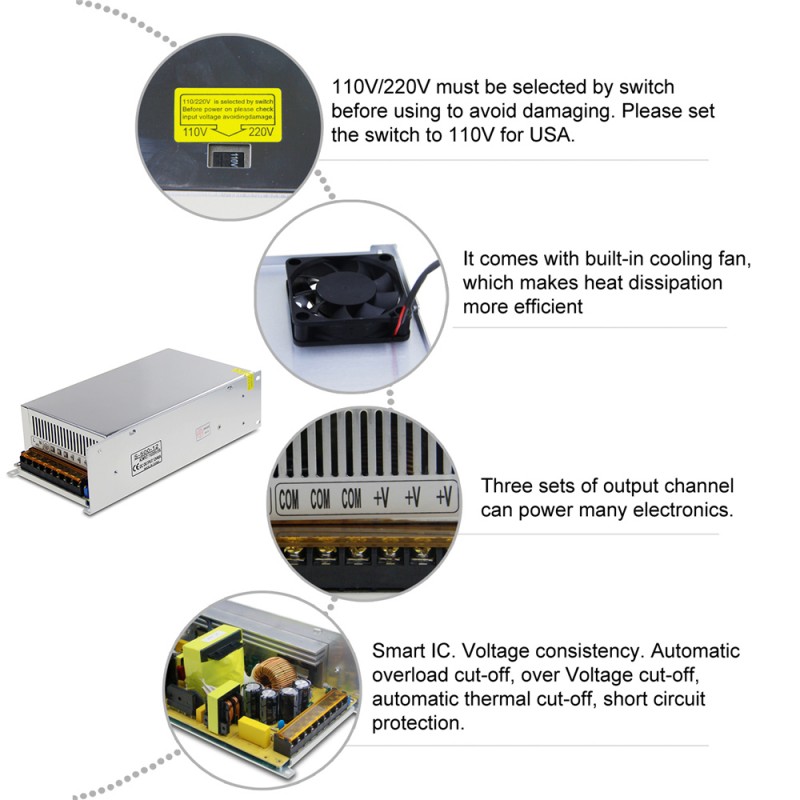

  1. 110V/220V must be selected by switch before using to avoid damaging. Please set the switch to 110V for USA.
  2. Once it is powered, the fan will run. It does make a noise and the speed of the fan is load based. So the higher the load, the louder the noise.
  3. Professional licensed electrician suggests that the max use should be no more than 80% of the full loads. We recommend to use this 12V 40A 480W power supply to power devices less than 384W.
  4. For motor devices, the start current is much higher that rate power. Please don’t use this SMPS to power motor devices higher than 30A 360W.
  5. High Voltage inside, do not remove the cover.
  6. It comes without installation instruction, wiring cable, on/off switch and screws. Professional Installation of qualified electrician is highly recommended.
  7. Indoor use only!

Package included

  • 1 x 12V 40A 480W Switch Mode Power Supply
