5V 20A 100W AC to DC Power Supply Transformer Adapter Converter LED Driver for WS2812B WS2811 WS2813 WS2801 APA102 LED Strip Pixel Light CCTV Camera Security System, AC 110V/220V Input
$19.99
- Brand: ALITOVE
- Product Code: 5V-20A-T
- Availability: In Stock
- Ex Tax: $19.99
Parameter
· Input: AC110V/220V 50/60Hz
· Output Voltage : DC 5V (±15% adjustable)
· Output Current: 20A max
· Output Wattage: 100W max

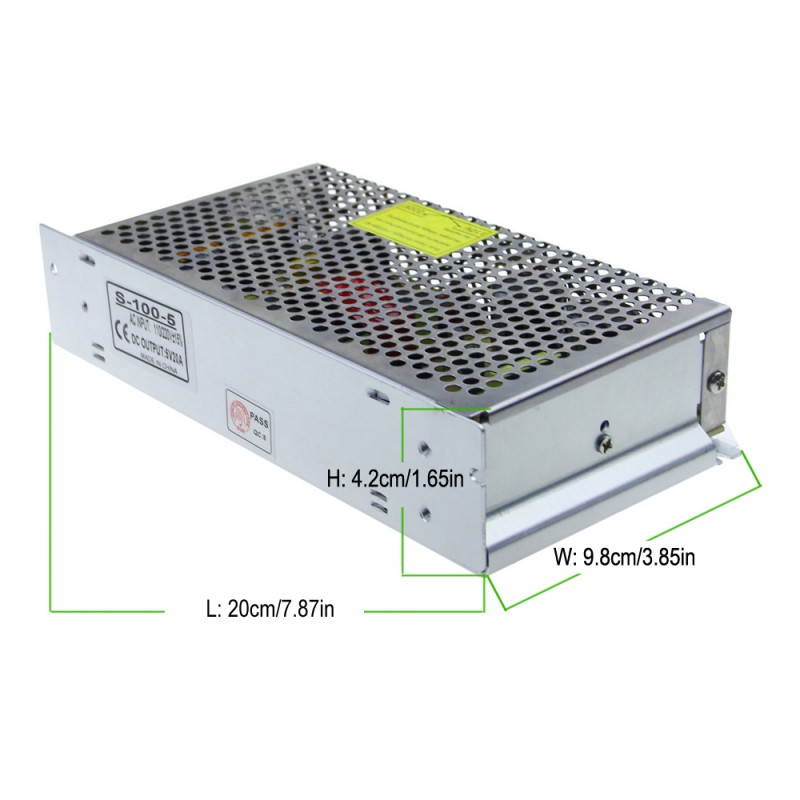

· Fix Screw Hole Diameter: 2.5mm (0.1inch)
· Working temperature: -10 to 55 degree Celsius
· Storage temperature: -20 to 60 degree Celsius
· Ambient Humidity: 0~85% Non-Condensation
· Material: Metal, Electronic Parts
· Safety Compliance: FCC / CE/CCC
· Weight: 1.1 lb / 500g

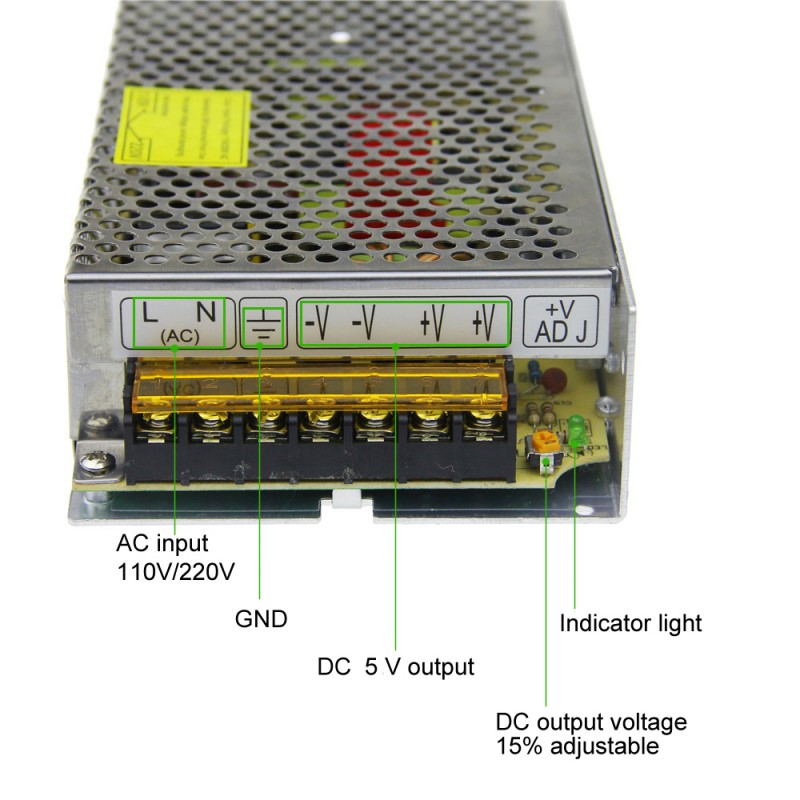

Connection instruction
· L: Live wire
· N: Negative wire
· 〨: Ground
· +V: DC power output “+”
· -V: DC power output “-“
· +V ADJ: Adjust the output voltage (±15%)
Kindly note
1. 110V/220V must be selected by switch before using to avoid damaging. Please set the switch to 110V for USA.
2. Once it is powered, the fan will run. It does make a noise and the speed of the fan is load based. So the higher the load, the louder the noise.
3. Professional licensed electrician suggests that the max use should be no more than 80% of the full loads. We recommend to use this 5V 20A 100W power supply to power devices less than 80W.
4. High Voltage inside, do not remove the cover.
5. It comes without installation instruction, wiring cable, on/off switch and screws. Professional Installation of qualified electrician is highly recommended.
Package included
· 1 x 5V 20A 100W Switch Mode Power Supply
